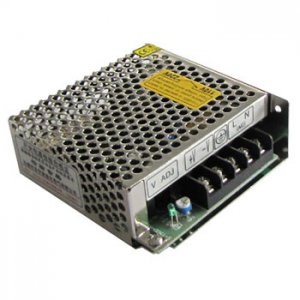

LED DC Universal Regulated Switching Power Supply S-15-12,12VDC,15.6Watts,Amps1.3
Features:
High efficiency, high reliability, lost cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit / Over load
Cooling by free air convection
Fixed switching frequency at 37KHz
DC Output Voltage: 12VDC;
Output Voltage Tolerace: +/-1%;
Output Current: Amps 1.3;
Output Current Range: 0~1.3A;
Output Power: 15.6Watts;
Ripple And Noise: 100mvp-p;
Voltage Range: +/-10%;
Input Voltage Range: 85～132 VAC / 170～264 VAC selected by switch 240～370VDC;
Frequency: 47~63Hz;
Efficiency: 70%;
AC Input Current: 0.5A/115V,0.25A/230V;
AC Inrush Current: Cold-Start Current:
15A/115V,30A/230V;
Storage temperature and humidity: -20 ℃~+85 ℃, 10%~95% RH;
Leakage Current:less Than 3.5mA/240VAC;
Working Temperature And Humidity: -10 ℃~+60 ℃ , (refer to output rating curve )20%~90% RH; Vibration: 10～500Hz，2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes;
SAFETY Withstand Voltage: I/P-O/P:1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC;
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC ;
STANDARD Safety Standard : Design refer to UL1012 ;
EMC Standard: Design refer to FCC Part15 J Conduction Class B ；
Setup,Rise,Hold Time : 200ms,100ms,30ms at full load ;
Standards: CE
