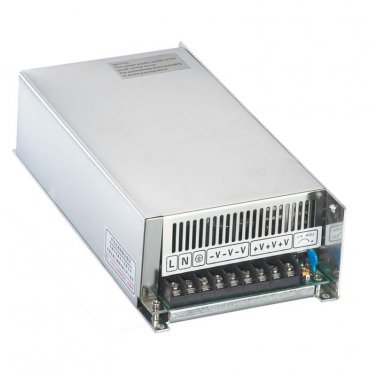

12V DC 40A 500W LED DC Regulated Switching Power Supply S-500-12V
If you need other output voltage, please contact with us!!!
Features:
Competitived price, high reliability
105Degree C output capacitor
AC input power suitable for the world
Soft-start current, reduce the AC input impact effectively
Short circuit protection, overload protection
Small size, light weight
100% full load burn-in test
Installed with EMI filter, minimun wave
DC Output Voltage: 12VDC;
Output Voltage Tolerance: +/-1%;
Output Current: Amps 40;
Output Current Range: 0~40A;
Output Power: 480Watts;
Ripple And Noise: 240mVp-p;
Voltage Range: +/-10%;
Input Voltage Range: 85~132 VAC / 170~264 VAC47~63 Hz;selected by switch 240~ 370VDC;
Frequency: 47~63Hz;
Efficiency: 80%;
STANDARD Safety Standard:Design refer toUL1012;
EMC Standard: Design refer to FCC Part15 J Conduction Class B ;
Setup,Rise,Hold Time: 200ms,100ms,30ms at full load;
Standards: CE.
