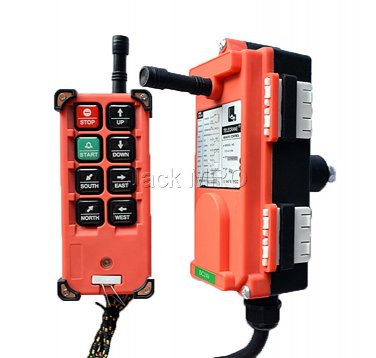

8 Channels 1 Speed Control Hoist Crane Truck Radio Remote Control System Controller IP65
Note: There are usually 12VDC,24VDC,36VAC,110VAC,220VAC,380VAC in stock, Please tell me which Voltage you want ?
* With 8 action buttons, including seven single speed button, a total stop
* Control up to 8 points
* Warning devices with battery voltage, the voltage is less than its own circuit.
* Security key switch to prevent unauthorized use.
* Set by the computer interface to the internal functions
* Up / down, east / west, north / south can be set as to whether mutual inhibition.
* Alternate 1 key can be set to start, acceleration, flick jump, ordinary functions.
Control distance: up to 100 meters
Security Code: 4300000000 kinds of factory and never repeated more than
Operating temperature: -35 ℃ to +80 ℃ (without regard to the battery temperature)
Protection: IP65
Transmitter Power: DC 3V (2 alkaline AA batteries can be used 4 months) Not Including Because of Airplane Limits
Receiver Power Supply: AC 380V/220V selectable, or DC 12V/24V
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relay, 5 amp fuse).
Standard configuration:
* Transmitter 1 (with strap)
* Receiver 1
* Receiver comes with 1 meter cable
* Operation and maintenance manual 1
For single hook, single-speed electric hoist or hoist flow traffic
And 9 contacts the following remote control of industrial use.
